Bestell-Nr. 2001 4900

Part No. 0675 0700

应用

PCB分板机切割雕刻电主轴（自动换刀）

Applications

PCB routing

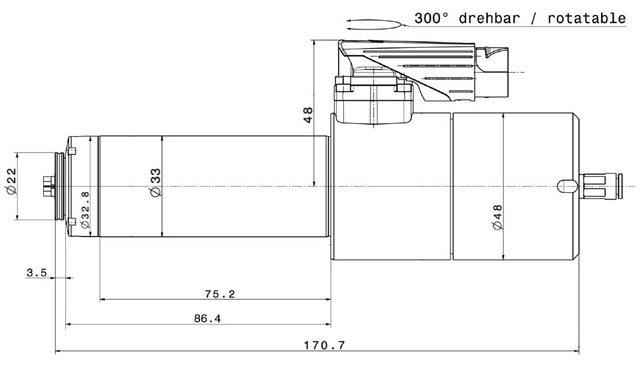

外壳夹装尺寸

33 mm

Clamping diameter

33 mm

马达类型

3相异步高速电机

Motor system

3 Phase asynchronous motor

转速范围

6.000 – 100.000 min-1

Speed range

6,000 – 100,000 rpm

额定电压

max. 60 V

Voltage

max. 60 V

电流

max. 8 A

Current

max. 8 A

扭矩

max. 8,4 Ncm

Torque

max. 8.4 Ncm

频率

100 - 1.666 Hz

Frequency

100 - 1,666 Hz

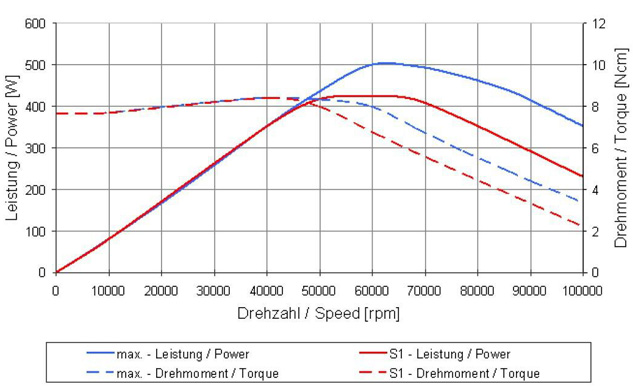

功率

max. 500 W

Output power

max. 500 W

重量

1,0 kg

Weight

1.0 kg

轴承

3 x陶瓷轴承, 油脂润滑

Bearing system

3 x Hybrid, lifetime lubrication

防护等级

IP 55/57 (加密封气)

Protection category

IP 55/57 (with sealing air + optional
accessory: sealing cap 2001 2618)

电机保护

KTY

Motor protection

KTY

安装位置

Working position

负载方向

径向 + 轴向

Load direction

axial + radial

锥面跳动

≤ 1 μm

Run-out (taper)

≤ 1 μm

刀具夹持范围

至 Ø 4.0 mm

Chuck clamping range

up to Ø 4.0 mm

换刀方式

压缩气 5 - 6 bar (管内经 Ø 4 mm)

Tool change

pneumatic 5 - 6 bar (hose Ø 4 mm)

冷却系统

外夹具冷却

Cooling system

Cooling via clamping bracket

防水防尘措施

密封气 27 Nl/min (管内经 Ø 4 mm)

Protected against dirt
and cooling lubricant

Sealing air 27 l/min@STP
(hose outer Ø 4 mm)

外壳材料

不锈钢

Housing material

Stainless steel

推荐变频器

e@syDrive® 4310(IP00)*, 4320(IP00)*,
4425*, 4426,TV4503*,TV4504,TV4506

Inverter recommendation

e@syDrive® 4310(IP00)*, 4320(IP00)*,
4425*, 4426,TV4503*,TV4504,TV4506

特性

导静电

Highlights

Electrostatic discharge

保留修改权

Subject to change without notice
